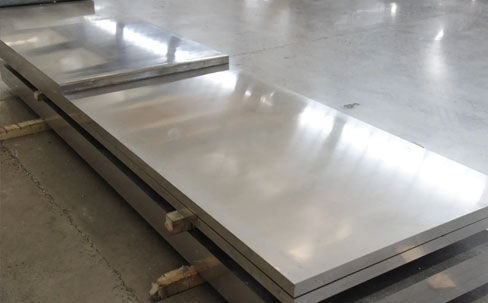

5A01 Aluminum plate

Product Description:

Aluminum plate is the thickness of more than 0.2mm to below 500mm, more than 200mm width, length of 16m of aluminum material is called aluminum plate or aluminum sheet, below 0.2mm is aluminum,200mm width for the row or strip (of course, with the progress of large equipment, the widest can do 600mm aluminum plate is also more).
Aluminum plate refers to the rectangular plate made of aluminum ingot rolling. It can be divided into pure aluminum plate, alloy aluminum plate, thin aluminum plate, medium-thick aluminum plate and patterned aluminum plate.

Consulting products:

PRODUCT DESCRIPTION

Item description:	Aluminum plate
Width:	500mm-1520mm or customized according to requirements
Thickness:	0.35mm-100mm or customized according to requirements
Length:	According to the need to customize
Main types:	Plate, belt, thin plate, medium plate, thick plate, super thick plate, coil
Brand:	1 series: 1A99, 1A97, 1050, 1050A, 1A50, 1060, 1070, 1350, 1145, 1035, 1100, 1200, 1235, 1A30, 2 series: 2A01, 2A02, 2A04, 2A06, 2A11, 2A12, 2A14, 2A16, 2A17, 2A21, 2A25, 2A70, 2A80, 2A90, 2204, 2014, 2214, 2017, 2219, 2024, 2124 3 series: 3A21, 3003, 3103, 3004, 3005, 3105 5 series: 5A01, 5A03, 5A05, 5A06, 5B05, 5B06, 5A12, 5A13, 5A30, 5A66, 5005, 5019, 5050, 5251, 5052, 5154, 5454, 5754, 5056, 5456, 5082, 5083, 5182, 5183, In 5086, 6 series: 6A12, 6B12, 6A51, 6101, 6005, 6060, 6061, 6063, 6063A, 6181, 6082, 7 series: 7003, 7005, 7020, 7022, 7050, 7075, 7475, 7A01, 7A03, 7A04, 7A05, 7A09, 7A10, 7A15, 7A52, 8 series: 8A06, 8011, 8090,
Standard:	ATSTM B209, JIS H4000-2006, GB/T3190-2008, GB/T3880-2006, etc
Surface:	Bright, polished, hairline, brush, sandblasting, grid, relief, etching, rolling surface finish, no stains, no rough edges, patterns, printing
Properties:	Corrosion resistance, heat resistance, high hardness, good ductility
Production process:	Hot rolling or cold rolling
Status:	O、H12、H14、H16、H18、H112、H113、H19、H111、H22、H24、H26、H211、H32、H36、H38、H131、H151、H241、H261、H341、H361、F、T53、T6、T63、T6351、T651、T73、T7351
Product application:	Industry, transportation, building modeling, automobile, medical machinery, etc

Divided by thickness :(unit mm)

Aluminum sheet 0.15-2.0

Aluminum sheet 2.0-6.0

Aluminum plate 6.0-25.0

Aluminum plate 25-200 ultra-thick plate more than 200

5××× series aluminum magnesium alloy
Standard: GB/T3190-1996
Features and scope of application:
5XXX series is a high magnesium alloy (5A06 (LF6)5A05 (LF5), which has good strength, corrosion resistance and machinability in non-heat treated alloys. The anodized surface is beautiful. Arc welding has good performance. The main alloying element in 5XXX series is magnesium, which has good corrosion resistance, weldability and medium strength. The excellent corrosion resistance makes 5XXX series alloy widely used in Marine applications such as ships, and automobile, aircraft welding parts, subway light rail, the need for strict fire pressure vessels (such as liquid tank cars, refrigerated cars, refrigerated containers), refrigeration equipment, television towers, drilling equipment, transportation equipment, missile parts, armor and so on.
"5XXX series belongs to Al-Mg-Si alloy (5083 "LF4", 5754, 5052), widely used, especially the construction industry cannot do without this alloy, is the most promising alloy. Good corrosion resistance, good weldability, good cold working property, and has medium strength. The main alloy element of 5XXX series is magnesium, which has good forming performance, corrosion resistance, weldability and medium strength. It is used in the manufacture of aircraft oil tank, oil pipe, and sheet metal parts of traffic vehicles and ships, instruments, street lamp support and rivets, hardware products, electrical appliance shell and so on.
5XXX aluminum magnesium alloy is widely used grades: 5A06, 5A05, 5083, 5754, 5052, 5005, 5086, 5182, etc
Chemical composition of 5××× Al-Mg alloy (expressed as the highest percentage unless a range value is listed)
硅Si	铁Fe	铜Cu	锰Mn	镁Mg	铬Cr	锌Zn	钛Ti	Other elements		aluminum
								each	A total of
0.4	0.35	0.1	0.4-1.0	4.0-4.9	0.05－0.25	0.25	0.15	0.05	0.15	余量
Mechanical and physical properties of 5××× Al-Mg alloy
Mechanical properties:
Tensile strength σb (MPa) ≥270
Conditional yield strength σ0.2 (MPa)≥120
State H112 Hardness: HB45-75
Elongation: above 12
Sample size: aluminum plate
Note: transverse mechanical properties of aluminum plate
5××× Aluminium magnesium alloy factory status: O, H13, H12, H14, H16, H18, H32, H34, H36, H38, H112, H19, H111, H116, H321, F, etc

In aluminum alloy is representative of the brand, the following 7075T651 aluminum plate as an example. The first 7 represents the aluminium and aluminium alloy group - aluminium, zinc and magnesium alloys. Aluminium and aluminium alloy groups are divided into nine main categories. Among them, 1, 3, 5, 6, 7 series of aluminum and aluminum alloy are mainly used, and other series are less likely to be used in actual use.

Class I: 1 Series: industrial pure aluminum

The second category: 2 series: aluminum - copper alloy

Third category: 3 series: aluminum manganese alloy

Fourth category: 4 series: Al-Si alloy

Fifth category: 5 series: aluminum magnesium alloy

Sixth category: 6 series: aluminum magnesium silicon alloy

Category 7:7 series: Al-Zn-MG-Cu series alloys

Class 8: Series 8: Other alloys

Class 9: Series 9: Spare alloys
