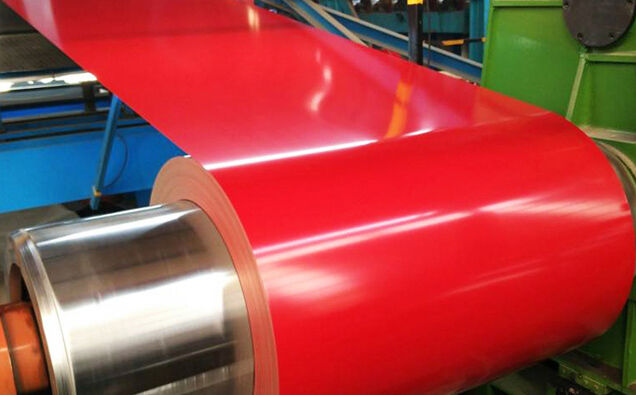

PPGI Painted steel plate/Colour coated steel sheet

Product Description:

Galvanized coil, a thin steel sheet that is dipped into a molten zinc bath to adhere a layer of zinc to its surface. It is mainly produced by the continuous galvanizing process, in which rolls of steel sheet are continuously dipped into a bath of molten zinc to make galvanized steel sheet; alloyed galvanized steel sheet. This steel sheet is also manufactured by the hot dipping method, but immediately after leaving the bath, it is heated to about 500°C to produce an alloyed coating of zinc and iron. This type of galvanized coil has good paint adhesion and weldability.

Consulting products:

Submit

PRODUCT DESCRIPTION

PPGI is galvanized color plate, PPGL is galvanized color plate, both are color plates, the substrates are different, one is galvanized structure, the other is galvanized structure, the substrate is different, which determines the difference in performance.

Advantages: It not only has the mechanical strength and easy forming properties of steel plates, but also has good decorative properties and corrosion resistance of organic materials. The coating has strong adhesion and can keep the color fresh for a long time. Application: Widely used in various fields such as construction, home appliances, furniture, public facilities and transportation.


Steel grade:Q195, Q195 LDX51D DX52D DX53D DX54D S220GD S250GD S550GD  SGCC  CGCC,SPCC
Thickness:0.17 to 1.0 mm
Width:600-1500 mm
Zinc coating:45--275 G/M2
Coil weight:3-6 tons
Coil Internal Diameter:508 mm/610mm
Surface treatment:Bright and clean, smooth and flat
Colors:As per the Ral codes.
Coating structure: 2/1:Top+ Prime/Back, PE/EPOXY; 20- 25 microns/5-7 microns
Lifespan:10-15 years, very strong corrosion resistance it wouldn't
ToleranceThickness:  +/-0.02 mm,
width: +/-2 mm;
Total quantity: +/-5%;
Zinc coating:  +/-5%
Tensile Strength:>300mpa
Yield Strength:370-380mpa
Machine features:Suitable for molding and join-up shaping, welding  processes.







PRODUCT APPLICATION

  • 图片简介
    Petroleum
  • 图片简介
    Marine Exploration
  • 图片简介
    Coal Mine
  • 图片简介
    Architectural Engineering
  • 图片简介
    Electric Field
  • 图片简介
    Boiler Field
  • Field of chemical industry
  • Textile Field

· Mechanical Properties:

We have been producing all kinds of steel for 18 years and have obtained ISO9001:2008 and Bureau Veritas certification.

· Quickly Delivery:

We have our own warehouse, the company's products are exported to the United States, Canada, and more than 80 countries and regions.

· 24 Hours Servise:

Companies adhere to the "integrity-based, cooperation and win-win" concept, praised by customers at home and abroad.

PACKAGE

· Packing:

Industry standard packaging or according to client's requirement

In bundle with steel strip or packed in wooden pallets or as customers requirement.

· Shipment:

20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM

40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM

40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM

· Trade terms:

EXW, FOB, CFR, CIF
