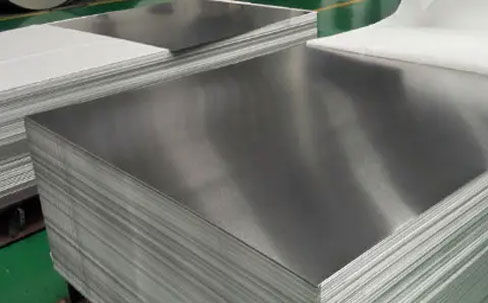

3003 Aluminum plate

Product Description:

Aluminum plate is the thickness of more than 0.2mm to below 500mm, more than 200mm width, length of 16m of aluminum material is called aluminum plate or aluminum sheet, below 0.2mm is aluminum,200mm width for the row or strip (of course, with the progress of large equipment, the widest can do 600mm aluminum plate is also more).
Aluminum plate refers to the rectangular plate made of aluminum ingot rolling. It can be divided into pure aluminum plate, alloy aluminum plate, thin aluminum plate, medium-thick aluminum plate and patterned aluminum plate.

Consulting products:

PRODUCT DESCRIPTION

Item description:	Aluminum plate
Width:	500mm-1520mm or customized according to requirements
Thickness:	0.35mm-100mm or customized according to requirements
Length:	According to the need to customize
Main types:	Plate, belt, thin plate, medium plate, thick plate, super thick plate, coil
Brand:	1 series: 1A99, 1A97, 1050, 1050A, 1A50, 1060, 1070, 1350, 1145, 1035, 1100, 1200, 1235, 1A30, 2 series: 2A01, 2A02, 2A04, 2A06, 2A11, 2A12, 2A14, 2A16, 2A17, 2A21, 2A25, 2A70, 2A80, 2A90, 2204, 2014, 2214, 2017, 2219, 2024, 2124 3 series: 3A21, 3003, 3103, 3004, 3005, 3105 5 series: 5A01, 5A03, 5A05, 5A06, 5B05, 5B06, 5A12, 5A13, 5A30, 5A66, 5005, 5019, 5050, 5251, 5052, 5154, 5454, 5754, 5056, 5456, 5082, 5083, 5182, 5183, In 5086, 6 series: 6A12, 6B12, 6A51, 6101, 6005, 6060, 6061, 6063, 6063A, 6181, 6082, 7 series: 7003, 7005, 7020, 7022, 7050, 7075, 7475, 7A01, 7A03, 7A04, 7A05, 7A09, 7A10, 7A15, 7A52, 8 series: 8A06, 8011, 8090,
Standard:	ATSTM B209, JIS H4000-2006, GB/T3190-2008, GB/T3880-2006, etc
Surface:	Bright, polished, hairline, brush, sandblasting, grid, relief, etching, rolling surface finish, no stains, no rough edges, patterns, printing
Properties:	Corrosion resistance, heat resistance, high hardness, good ductility
Production process:	Hot rolling or cold rolling
Status:	O、H12、H14、H16、H18、H112、H113、H19、H111、H22、H24、H26、H211、H32、H36、H38、H131、H151、H241、H261、H341、H361、F、T53、T6、T63、T6351、T651、T73、T7351
Product application:	Industry, transportation, building modeling, automobile, medical machinery, etc

Divided by thickness :(unit mm)

Aluminum sheet 0.15-2.0

Aluminum sheet 2.0-6.0

Aluminum plate 6.0-25.0

Aluminum plate 25-200 ultra-thick plate more than 200

3XXX series aluminum manganese alloy
Standard: GB/T3190-1996
Features and scope of application:
3XXX series is Al-Mn alloy, which is the most widely used antirust aluminum. The strength of this alloy is not high (slightly higher than that of industrial pure aluminum), and it can not be strengthened by heat treatment. Therefore, cold working method is adopted to improve its mechanical properties: It has high plasticity in the annealing state, good plasticity in the semi-cold hardening, low plasticity in the cold hardening, good corrosion resistance, good weldability, poor machinability. It is mainly used for demanding high plasticity and good weldability. It is used for low load parts working in liquid or gas medium, such as mailbox, gasoline or lubricating oil conduit, various liquid containers and other small load parts made by deep drawing. 3XXX series aluminum plates are used for rivets with good formability, solubility and corrosion resistance. It is used for processing parts and components requiring good formability, high corrosion resistance and good weldability, or for work requiring both these properties and higher strength than 1XXX series alloy, such as kitchenware, food and chemical product processing and storage devices, tanks and tanks for transporting liquid products, All kinds of pressure vessel and pipe general articles, heat sink, cosmetic board, photocopier roller, ship material processed by thin plate.
Chemical composition of 3××× Al-Mn alloy (expressed as the highest percentage unless a range value is listed)
硅Si	铁Fe	铜Cu	锰Mn	镁Mg	铬Cr	锌Zn	钛Ti	Other elements		aluminum
								each	A total of
0.6	0.7	0.05－0.2	1.0-1.5	-	-	0.1	-	0.05	0.15	97以上
Mechanical and physical properties of 3××× Al-Mn alloy
Mechanical properties:
Tensile strength σb (MPa) ≥140-200
Conditional yield strength σ0.2 (MPa)≥115
State H24 Hardness: HB35-45
Elongation: 12
Sample size: aluminum plate
Note: Lateral mechanical properties of aluminum plate at room temperature
Factory status of 3××× Al-Mn alloy: O, H12, H14, H16, H18, H19, H25, H111, H113, H211, H32, H34, H36, H38, H131, H151, H241, H261, H341, H361, F, etc

In aluminum alloy is representative of the brand, the following 7075T651 aluminum plate as an example. The first 7 represents the aluminium and aluminium alloy group - aluminium, zinc and magnesium alloys. Aluminium and aluminium alloy groups are divided into nine main categories. Among them, 1, 3, 5, 6, 7 series of aluminum and aluminum alloy are mainly used, and other series are less likely to be used in actual use.

Class I: 1 Series: industrial pure aluminum

The second category: 2 series: aluminum - copper alloy

Third category: 3 series: aluminum manganese alloy

Fourth category: 4 series: Al-Si alloy

Fifth category: 5 series: aluminum magnesium alloy

Sixth category: 6 series: aluminum magnesium silicon alloy

Category 7:7 series: Al-Zn-MG-Cu series alloys

Class 8: Series 8: Other alloys

Class 9: Series 9: Spare alloys
