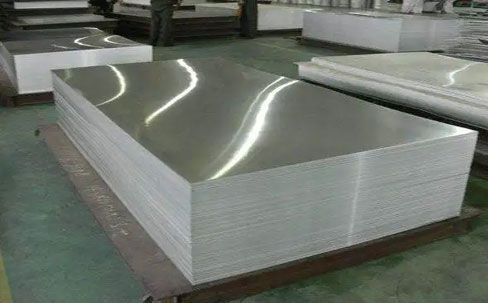

2A01 Aluminum plate

Product Description:

Aluminum plate is the thickness of more than 0.2mm to below 500mm, more than 200mm width, length of 16m of aluminum material is called aluminum plate or aluminum sheet, below 0.2mm is aluminum,200mm width for the row or strip (of course, with the progress of large equipment, the widest can do 600mm aluminum plate is also more).
Aluminum plate refers to the rectangular plate made of aluminum ingot rolling. It can be divided into pure aluminum plate, alloy aluminum plate, thin aluminum plate, medium-thick aluminum plate and patterned aluminum plate.

Consulting products:

PRODUCT DESCRIPTION

Item description:	Aluminum plate
Width:	500mm-1520mm or customized according to requirements
Thickness:	0.35mm-100mm or customized according to requirements
Length:	According to the need to customize
Main types:	Plate, belt, thin plate, medium plate, thick plate, super thick plate, coil
Brand:	1 series: 1A99, 1A97, 1050, 1050A, 1A50, 1060, 1070, 1350, 1145, 1035, 1100, 1200, 1235, 1A30, 2 series: 2A01, 2A02, 2A04, 2A06, 2A11, 2A12, 2A14, 2A16, 2A17, 2A21, 2A25, 2A70, 2A80, 2A90, 2204, 2014, 2214, 2017, 2219, 2024, 2124 3 series: 3A21, 3003, 3103, 3004, 3005, 3105 5 series: 5A01, 5A03, 5A05, 5A06, 5B05, 5B06, 5A12, 5A13, 5A30, 5A66, 5005, 5019, 5050, 5251, 5052, 5154, 5454, 5754, 5056, 5456, 5082, 5083, 5182, 5183, In 5086, 6 series: 6A12, 6B12, 6A51, 6101, 6005, 6060, 6061, 6063, 6063A, 6181, 6082, 7 series: 7003, 7005, 7020, 7022, 7050, 7075, 7475, 7A01, 7A03, 7A04, 7A05, 7A09, 7A10, 7A15, 7A52, 8 series: 8A06, 8011, 8090,
Standard:	ATSTM B209, JIS H4000-2006, GB/T3190-2008, GB/T3880-2006, etc
Surface:	Bright, polished, hairline, brush, sandblasting, grid, relief, etching, rolling surface finish, no stains, no rough edges, patterns, printing
Properties:	Corrosion resistance, heat resistance, high hardness, good ductility
Production process:	Hot rolling or cold rolling
Status:	O、H12、H14、H16、H18、H112、H113、H19、H111、H22、H24、H26、H211、H32、H36、H38、H131、H151、H241、H261、H341、H361、F、T53、T6、T63、T6351、T651、T73、T7351
Product application:	Industry, transportation, building modeling, automobile, medical machinery, etc

Divided by thickness :(unit mm)

Aluminum sheet 0.15-2.0

Aluminum sheet 2.0-6.0

Aluminum plate 6.0-25.0

Aluminum plate 25-200 ultra-thick plate more than 200

2××× series aluminum copper alloy
Standard: GB/T3190-1996
Features and scope of application:
2XXX series is a typical duraluminium alloy in aluminum-copper-magnesium series, with reasonable composition and good comprehensive properties. This alloy is produced in many countries and is the most widely used of the duralumins. The alloy is characterized by high strength and certain heat resistance, and can be used as working parts below 150°C. At temperatures above 125°C, the strength of 2XXX series alloys is higher than that of 7075 alloys. The forming performance is good in the hot state, annealing and new quenching state, and the strengthening effect of heat treatment is significant, but the heat treatment process is strict. The corrosion resistance is poor, but it can be effectively protected by pure aluminum coating. It is easy to crack when welding, but it can be welded or riveted by special process. Widely used in aircraft structures, rivets, truck wheels, propeller components and other structural parts.
2XXX series aluminum copper alloy applications
The 2XXX series aluminum-copper alloys are widely used in aircraft structures due to their high strength and good fatigue strength, especially in areas where the wing and fuselage structures are subjected to tension.
2XXX series of duralumin are widely used grades: 2024(2A12), LY12, LY11, 2A11, 2A14 (LD10), 2017, 2A17, etc.
Chemical composition of 2XXX series aluminum-copper alloys (expressed as the highest percentage unless a range value is listed)
硅Si	铁Fe	铜Cu	锰Mn	镁Mg	铬Cr	锌Zn	钛Ti	其它元素		铝
								每个	总计
0.5	0.5	3.8－4.9	0.3-0.9	1.2-1.8	0.01	0.25	0.15	0.15	0.15	92.6↑
Mechanical and physical properties of 2××× aluminum copper alloy
Mechanical properties:
Tensile strength σb (MPa) ≥425
The conditional yield strength σ0.2 (MPa)≥275
State T4 hardness: HB 120--145
Elongation: above 14
Sample size: aluminum plate
Note: Lateral mechanical properties of aluminum plate at room temperature
2××× aluminum copper alloy factory condition: O, H13, H15, T3, T4, T6, T451, T651, T72, T361, T351, T861, T87, T37, T81, T62, T8510, T8511, T852, etc

In aluminum alloy is representative of the brand, the following 7075T651 aluminum plate as an example. The first 7 represents the aluminium and aluminium alloy group - aluminium, zinc and magnesium alloys. Aluminium and aluminium alloy groups are divided into nine main categories. Among them, 1, 3, 5, 6, 7 series of aluminum and aluminum alloy are mainly used, and other series are less likely to be used in actual use.

Class I: 1 Series: industrial pure aluminum

The second category: 2 series: aluminum - copper alloy

Third category: 3 series: aluminum manganese alloy

Fourth category: 4 series: Al-Si alloy

Fifth category: 5 series: aluminum magnesium alloy

Sixth category: 6 series: aluminum magnesium silicon alloy

Category 7:7 series: Al-Zn-MG-Cu series alloys

Class 8: Series 8: Other alloys

Class 9: Series 9: Spare alloys
