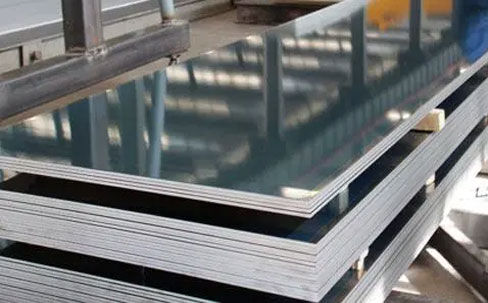

1050 Aluminum plate

‹

  • 1050 Aluminum plate

›

Product Description:

Aluminum plate is the thickness of more than 0.2mm to below 500mm, more than 200mm width, length of 16m of aluminum material is called aluminum plate or aluminum sheet, below 0.2mm is aluminum,200mm width for the row or strip (of course, with the progress of large equipment, the widest can do 600mm aluminum plate is also more).
Aluminum plate refers to the rectangular plate made of aluminum ingot rolling. It can be divided into pure aluminum plate, alloy aluminum plate, thin aluminum plate, medium-thick aluminum plate and patterned aluminum plate.

Consulting products:

Submit

PRODUCT DESCRIPTION

Item description:Aluminum plate
Width:500mm-1520mm or customized according to requirements
Thickness:0.35mm-100mm or customized according to requirements
Length:According to the need to customize
Main types:Plate, belt, thin plate, medium plate, thick plate, super thick plate, coil
Brand:

1 series: 1A99, 1A97, 1050, 1050A, 1A50, 1060, 1070, 1350, 1145, 1035, 1100, 1200, 1235, 1A30,

2 series: 2A01, 2A02, 2A04, 2A06, 2A11, 2A12, 2A14, 2A16, 2A17, 2A21, 2A25, 2A70, 2A80, 2A90, 2204, 2014, 2214, 2017, 2219, 2024, 2124

3 series: 3A21, 3003, 3103, 3004, 3005, 3105

5 series: 5A01, 5A03, 5A05, 5A06, 5B05, 5B06, 5A12, 5A13, 5A30, 5A66, 5005, 5019, 5050, 5251, 5052, 5154, 5454, 5754, 5056, 5456, 5082, 5083, 5182, 5183, In 5086,

6 series: 6A12, 6B12, 6A51, 6101, 6005, 6060, 6061, 6063, 6063A, 6181, 6082,

7 series: 7003, 7005, 7020, 7022, 7050, 7075, 7475, 7A01, 7A03, 7A04, 7A05, 7A09, 7A10, 7A15, 7A52,

8 series: 8A06, 8011, 8090,

Standard:ATSTM B209, JIS H4000-2006, GB/T3190-2008, GB/T3880-2006, etc
Surface:Bright, polished, hairline, brush, sandblasting, grid, relief, etching, rolling surface finish, no stains, no rough edges, patterns, printing
Properties:Corrosion resistance, heat resistance, high hardness, good ductility
Production process:Hot rolling or cold rolling
Status:O、H12、H14、H16、H18、H112、H113、H19、H111、H22、H24、H26、H211、H32、H36、H38、H131、H151、H241、H261、H341、H361、F、T53、T6、T63、T6351、T651、T73、T7351
Product application:Industry, transportation, building modeling, automobile, medical machinery, etc




Divided by thickness :(unit mm)

Aluminum sheet 0.15-2.0

Aluminum sheet 2.0-6.0

Aluminum plate 6.0-25.0

Aluminum plate 25-200 ultra-thick plate more than 200

Features and scope of application:
1XXX series is formed by adding a small amount of copper element into pure aluminum, which has excellent forming processing characteristics, high corrosion resistance, good weldability and electrical conductivity. 1XXX series aluminum alloys are widely used in products with low strength requirements, such as chemical instruments, sheet processing parts, deep drawn or spinning concaved vessels, welding parts, heat exchangers, bell surfaces and plates, nameplates, kitchenware, ornaments, reflective appliances, etc.
1XXX pure aluminum is widely used grades: 1050, 1060, 1070, 1100.
1××× Chemical composition of pure aluminium and aluminium alloys (expressed as the highest percentage unless a range value is listed)
硅Si铁Fe铜Cu锰Mn镁Mg铬Cr锌Zn钛TiOther elementsaluminum
eachA total of
0.250.355.0－6.00.030.030.18－0.280.050.030.050.1599.6↑
1××× pure aluminum and aluminum alloy mechanical and physical properties
Mechanical properties:
Tensile strength σb (MPa) ≥75
Conditional yield strength σ0.2 (MPa)≥35
Condition H112 Hardness: 30-45
Elongation: 12
Sample size: aluminum plate
Note: transverse mechanical properties of aluminum plate
1××× pure aluminum and aluminum alloy series factory status: O, H12, H14, H16, H18, H112, H113, H19, H25, H111, H211, H22, H24, H25, H26, F, etc

In aluminum alloy is representative of the brand, the following 7075T651 aluminum plate as an example. The first 7 represents the aluminium and aluminium alloy group - aluminium, zinc and magnesium alloys. Aluminium and aluminium alloy groups are divided into nine main categories. Among them, 1, 3, 5, 6, 7 series of aluminum and aluminum alloy are mainly used, and other series are less likely to be used in actual use.

Class I: 1 Series: industrial pure aluminum

The second category: 2 series: aluminum - copper alloy

Third category: 3 series: aluminum manganese alloy

Fourth category: 4 series: Al-Si alloy

Fifth category: 5 series: aluminum magnesium alloy

Sixth category: 6 series: aluminum magnesium silicon alloy

Category 7:7 series: Al-Zn-MG-Cu series alloys

Class 8: Series 8: Other alloys

Class 9: Series 9: Spare alloys



PRODUCT APPLICATION

  • 图片简介
    Petroleum
  • 图片简介
    Marine Exploration
  • 图片简介
    Coal Mine
  • 图片简介
    Architectural Engineering
  • 图片简介
    Electric Field
  • 图片简介
    Boiler Field
  • Field of chemical industry
  • Textile Field

· Mechanical Properties:

We have been producing all kinds of steel for 18 years and have obtained ISO9001:2008 and Bureau Veritas certification.

· Quickly Delivery:

We have our own warehouse, the company's products are exported to the United States, Canada, and more than 80 countries and regions.

· 24 Hours Servise:

Companies adhere to the "integrity-based, cooperation and win-win" concept, praised by customers at home and abroad.

PACKAGE

· Packing:

Industry standard packaging or according to client's requirement

In bundle with steel strip or packed in wooden pallets or as customers requirement.

· Shipment:

20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM

40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM

40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM
