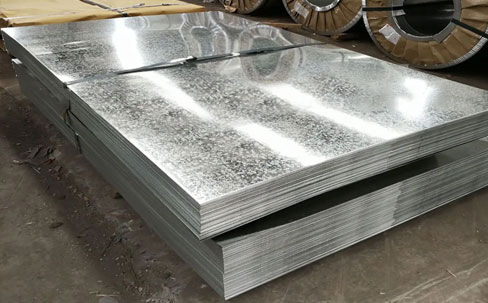

Hot dip galvanized steel sheet

‹

  • Hot dip galvanized steel sheet

›

Product Description:

Hot-dip galvanizing is the reaction of molten metal with an iron substrate to produce an alloy layer, thereby combining the substrate and the plating layer. Hot-dip galvanizing is to pickle iron and steel parts first. In order to remove iron oxide on the surface of iron and steel parts, after pickling, it is cleaned in an ammonium chloride or zinc chloride aqueous solution or a mixed solution of ammonium chloride and zinc chloride.And then sent to the hot-dip plating bath. Hot-dip galvanizing has the advantages of uniform coating, strong adhesion and long service life.

Consulting products:

Submit

PRODUCT DESCRIPTION

Hot-dip galvanizing is the reaction of molten metal with an iron substrate to produce an alloy layer, thereby combining the substrate and the plating layer. Hot-dip galvanizing is to pickle iron and steel parts first. In order to remove iron oxide on the surface of iron and steel parts, after pickling, it is cleaned in an ammonium chloride or zinc chloride aqueous solution or a mixed solution of ammonium chloride and  zinc chloride.And then sent to the hot-dip plating bath. Hot-dip galvanizing has the advantages of uniform coating, strong adhesion and long service life.


Echnical StandardEN10147, EN10142, DIN 17162, JIS G3302, ASTM A653  JIS G3302,ASTM A653M,EN10327,DIN17162,EN 10142,EN10292,
Steel GradeDx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
TypeCoil/Sheet/Plate/Strip
Thickness0.12-6.00mm,or customer's requirement
Width600mm-1500mm, according to customer's requirement
Type of CoatingHot Dipped Galvanized Steel(HDGI)
Zinc Coating30-275g/m2
Surface TreatmentPassivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) galvanized，PVC，black and color painting，transparent oil，anti rust oil
Surface StructureNormal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
PackageWater proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement




  • Stamping steel

Q/BQB 420-2003Q/BQB 420-2001Q/BQB 422-2000
DC51D+Z(St01Z,St02Z,St03Z)St01Z,St02Z,St03ZDC51D+Z
DC51D+ZF-DC51D+ZF
DC52D+Z(St04Z)St04ZDC52D+Z
DC52D+ZF-DC52D+ZF
DC53D+Z(St05Z)St05ZDC53D+Z
DC53D+ZF-DC53D+ZF
DC54D+Z(St06Z)St06ZDC54D+Z
DC54D+ZF-DC54D+ZF
DC56D+Z(St07Z)St07Z　DC56D+Z
DC56D+ZFDC56D+ZF
DD51D+Z(St01ZR,St02ZR)St01ZR,St02ZR-
DD54D+ZF(St06ZR)--


  • Structural steel

Q/BQB 420-2003Q/BQB 420-2001Q/BQB 422-2000
S220GD+Z,S220GD+ZF-S220GD+Z,S220GD+ZF
S250GD+Z,S250GD+ZF-S250GD+Z,S250GD+ZF
S280GD+Z(StE280-2Z)StE280-2ZS280GD+Z
S280GD+ZF-S280GD+ZF
S320GD+Z,S320GD+ZF-S320GD+Z,S320GD+ZF
S350GD+Z(StE345-2Z)StE345-2ZS350GD+Z
S350GD+ZF-S350GD+ZF
S550GD+Z,S550GD+ZF-S550GD+Z,S550GD+ZF

  • High strength steel for cold forming

Q/BQB 420-2003Q/BQB 420-2001Q/BQB 422-2000
H220PD+Z,H220PD+ZF-H220PD+Z,H220PD+ZF
H260PD+Z,H260PD+ZF-H260PD+Z,H260PD+ZF
H300LAD+Z,H300LAD+ZF-H300LAD+Z,H300LAD+ZF
H340LAD+Z(HSA340Z)HSA340ZH340LAD+Z
H340LAD+ZF-H340LAD+ZF
H380LAD+Z-H380LAD+Z
H420LAD+Z(HSA410Z)HSA410ZH420LAD+Z
H180YD+Z,H180YD+ZF-H180YD+Z,H180YD+ZF
H220YD+Z,H220YD+ZF--
H260YD+Z,H260YD+ZF--
H180BD+Z,H180BD+ZF-H180BD+Z,H180BD+ZF
H220BD+Z,H220BD+ZF--
H260BD+Z,H260BD+ZF-H260BD+Z,H260BD+ZF
HR340LAD+Z(HSA340ZR)HSA340ZR-
HR410LAD+Z(HSA410ZR)HSA410ZR-


bse metal typeGradeCHEMICAL COMPOSITION %
CSiMnP
cold rolled steel sheetDC51D+Z (St01Z, St02Z, St03Z) , DC51D+ZF≤0.10-≤0.50≤0.035
DC52D+Z (St04Z), DC52D+ZF≤0.08-≤0.45≤0.030
DC53D+Z (St05Z), DC53D+ZF≤0.08-≤0.40≤0.030
DC54D+Z (St06Z), DC54D+ZF≤0.01≤0.10≤0.30≤0.025
DC56D+Z (St07Z), DC56D+ZF≤0.01≤0.10≤0.30≤0.025
hot rolled steel sheetDD51D+Z (St01ZR, St02ZR)≤0.10-≤0.50≤0.035
DD54D+Z (St06ZR)≤0.01≤0.10≤0.30≤0.025





ProjectCharacteristic
Coating typesPure zinc
Zn-Fe alloy
Surface structureZero zinc flower (coating without lead)
Minimized Spangle
Coating formsPure zinc equal thickness coating 40/40-225/225 g/m2
Pure zinc differential thickness coating 30-150 (per side) g/m2
Zinc iron alloy coating (equal thickness) 30/30-90/90g/m2
Size rangeCold rolled substrate: thickness of 0.3-3.0mm
Width is 800-1830 - mm
Hot rolled substrate: 1.8-2.8mm thick
Width is 900-1500 - mm
GradeSteel for stamping: general use, stamping, deep punching, super deep punching, super deep punching
Structural steel: 220-550 mpa (yield strength)
High strength steel for cold forming: 180-420mpa (yield strength)




PRODUCT APPLICATION

  • 图片简介
    Petroleum
  • 图片简介
    Marine Exploration
  • 图片简介
    Coal Mine
  • 图片简介
    Architectural Engineering
  • 图片简介
    Electric Field
  • 图片简介
    Boiler Field
  • Field of chemical industry
  • Textile Field

· Mechanical Properties:

We have been producing all kinds of steel for 18 years and have obtained ISO9001:2008 and Bureau Veritas certification.

· Quickly Delivery:

We have our own warehouse, the company's products are exported to the United States, Canada, and more than 80 countries and regions.

· 24 Hours Servise:

Companies adhere to the "integrity-based, cooperation and win-win" concept, praised by customers at home and abroad.

PACKAGE

· Packing:

Industry standard packaging or according to client's requirement

In bundle with steel strip or packed in wooden pallets or as customers requirement.

· Shipment:

20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM

40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM

40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM

· Trade terms:

EXW, FOB, CFR, CIF
