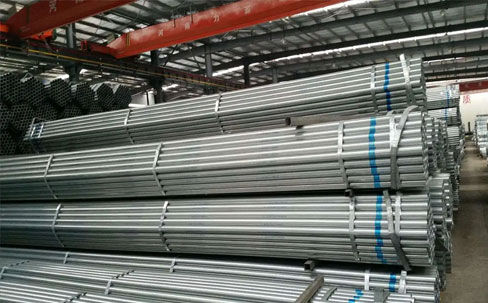

Galvanized steel pipe

Product Description:

Hot dip galvanized pipeHot dip galvanized pipe is to make molten metal and iron matrix reaction to produce alloy layer, so that the substrate and coating two combined.Hot dip galvanizing is to pickle the steel pipe first. In order to remove the iron oxide on the surface of the steel pipe, after pickling, it is cleaned by ammonium chloride or zinc chloride aqueous solution or ammonium chloride and zinc chloride mixed aqueous solution tank, and then sent into the hot dip plating tank.Hot dip galvanizing has the advantages of uniform coating, strong adhesion and long service life.

Consulting products:

Submit

PRODUCT DESCRIPTION


Product NameGalvanized Steel Pipe
Material

S235JRH(1.0039)、S275J0H(1.0149)、S275J2H(1.0138)、S355J0H(1.0547)、S355J2H(1.0576)、

S355K2H(1.0512)、S275NH(1.0493)、S275NLH(1.0497)、S355NH(1.0539)、S355NLH(1.0549)、

S420NH(1.8750)、S420NLH(1.8751)、S460NH(1.8953)、S460NLH(1.8956)

Wall Thickness1MM~150MM
Outer Diameter6MM~2500MM
Length5m-14m,5.8m,6m,10m-12m,12m or as customer's actual reques
StandardAPI5L,ASTM A53-2007,ASTM A671-2006,ASTM A252-1998,ASTM A450-1996,ASME B36.10M-2004,ASTM A523-1996,BS EN10296,BS6323,BS 6363
Grade10#-45#, 16Mn, A53-A369, Q195-Q345, ST35-ST52Grade A, Grade B, Grade C
TechniqueHot Dip Galvanized Round Steel Pipe
PackingBundle, or with all kinds of colors PVC or as your requirements
Pipe EndsPlain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc.
Surface Treatment

1. Galvanized

2. PVC,Black and color painting

3. Transparent oil,anti-rust oil

4. According to clients requirement




Regular Sizes of Galvanized Steel Pipe
203/4"25mm-26.9mm1.5mm-3.0mm169
251"32mm-33.7mm1.5mm-3.0mm127
321.1/4"40mm-42.4mm1.5mm-4.0mm91
401.1/2"47mm-48.3mm1.5mm-4.0mm91
502"58mm-60.3mm1.5mm-4.0mm61
652.1/2"73mm-76.1mm1.5mm-4.0mm37
803"87mm-88.9mm1.5mm-9.5mm37
1004"113mm-114.3mm2.0mm-9.5mm19
1255"140mm-141.3mm3.0mm-9.5mm19
1506"165mm-168.3mm3.0mm-12.0mm19
2008"219.13.2mm-12.0mm7
25010"2733.2mm-12.0mm5 or 1
30012"323.9mm-325mm6.0mm-15mm3 or 1
35014"355mm-355.6mm8.0mm-15mm1
40016"406.4mm8.0mm-20mm1
45018"457mm9.0mm-23mm1
50020"508mm9.0mm-23mm1
55022"558.8mm9.0mm-23mm1
60024"609.6mm9.0mm-23mm1




PRODUCT APPLICATION

  • 图片简介
    Petroleum
  • 图片简介
    Marine Exploration
  • 图片简介
    Coal Mine
  • 图片简介
    Architectural Engineering
  • 图片简介
    Electric Field
  • 图片简介
    Boiler Field
  • Field of chemical industry
  • Textile Field

· Mechanical Properties:

We have been producing all kinds of steel for 18 years and have obtained ISO9001:2008 and Bureau Veritas certification.

· Quickly Delivery:

We have our own warehouse, the company's products are exported to the United States, Canada, and more than 80 countries and regions.

· 24 Hours Servise:

Companies adhere to the "integrity-based, cooperation and win-win" concept, praised by customers at home and abroad.

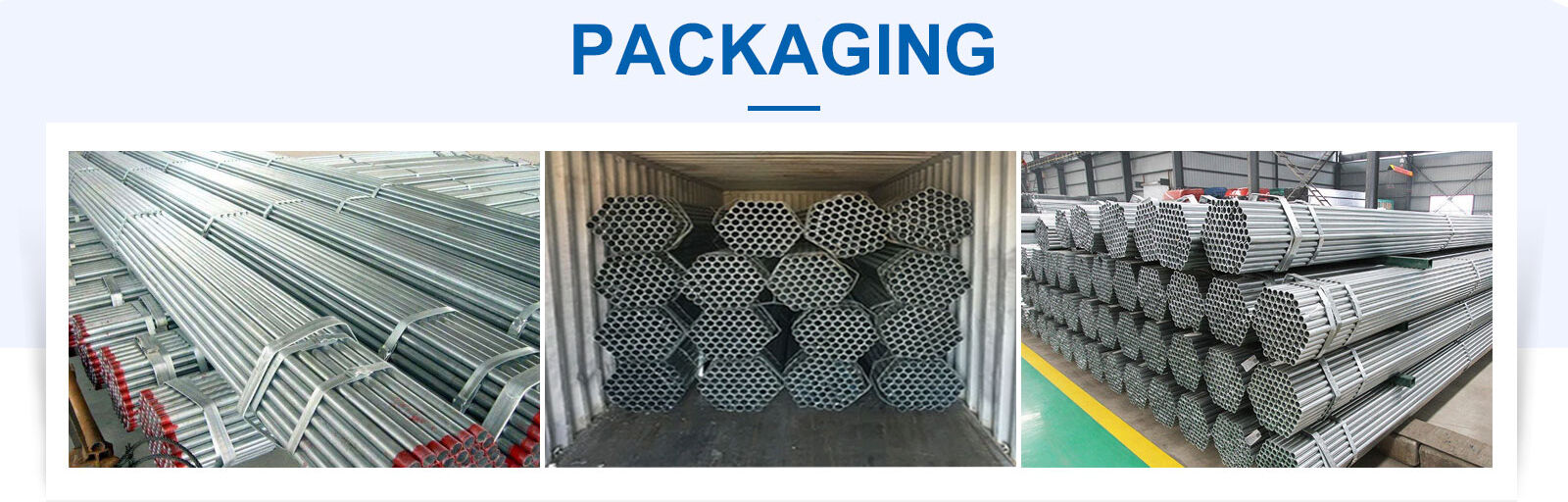

PACKAGE

· Packing:

Industry standard packaging or according to client's requirement

In bundle with steel strip or packed in wooden pallets or as customers requirement.

· Shipment:

20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM

40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM

40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM

· Trade terms:

EXW, FOB, CFR, CIF
